3D Printed Tinker All-In-One Digital Dash Cluster for 1986-1993 Chevrolet S10 and GMC Jimmy and Sonoma - CarChains3d

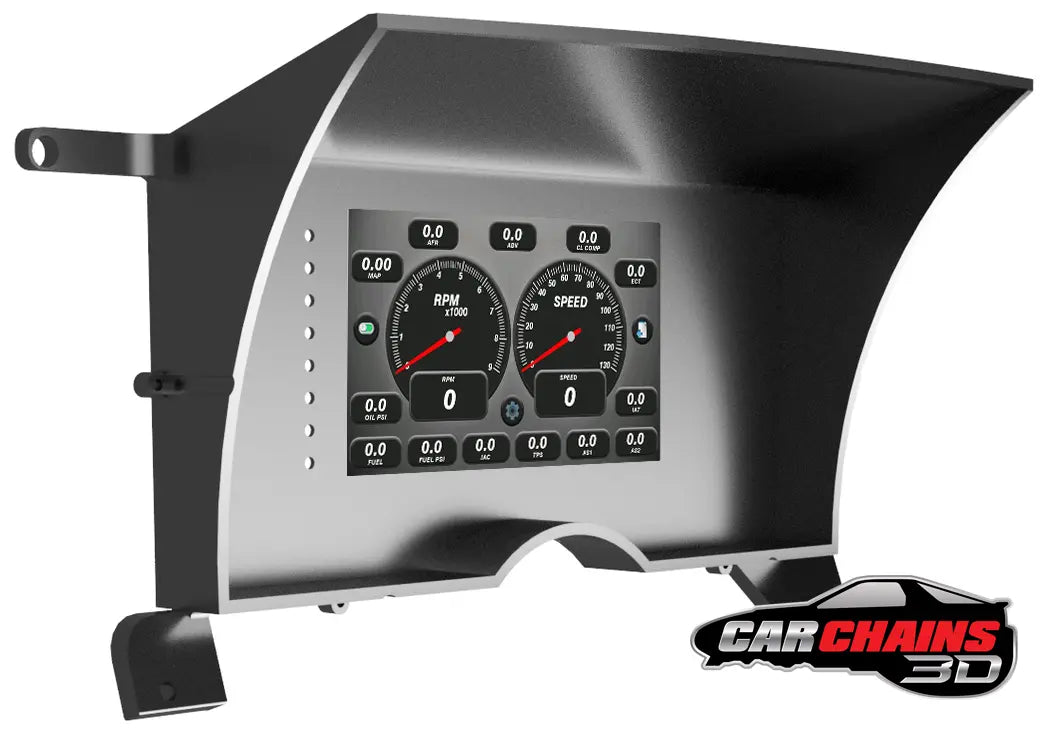

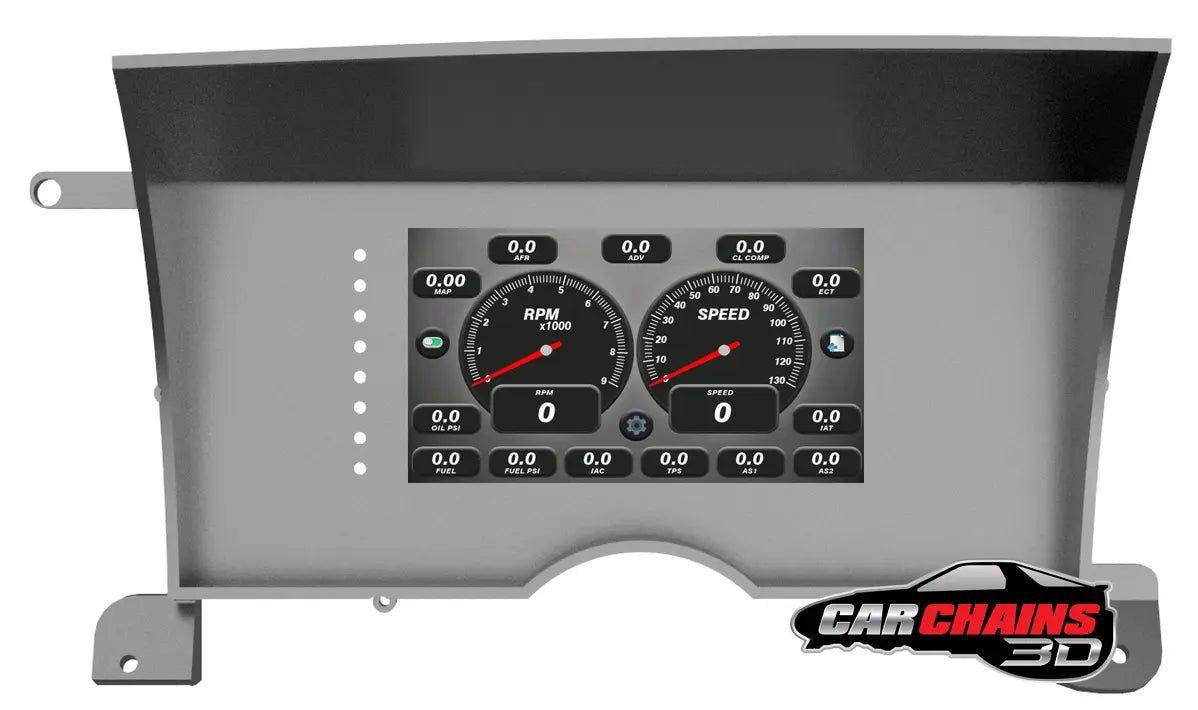

Transform your 1986–1993 Chevrolet S10, GMC Jimmy, or GMC Sonoma with CarChains3D’s 3D Printed All-In-One Digital Dash Cluster, built around the powerful Tinker Electronics LITE dash. This cluster is a direct-fit solution for late first-gen and early second-gen S10 trucks and SUVs (1986–1993) and comes complete with your choice of a 7" or 10" Tinker LITE screen pre-installed into a precision 3D printed insert. No cutting, no guesswork—just modern digital performance in a clean, OEM-style fit.

The Tinker LITE dash delivers nearly all the features of the V2 model at a more affordable price, while maintaining fast performance and compatibility. With customizable layouts, built-in GPS, CANBUS communication, and quick boot times, the LITE is designed to perform on both the street and the track.

Key Features:

• Direct Fitment – Engineered for 1986–1993 Chevrolet S10, GMC Jimmy, and GMC Sonoma dashboards.

• Complete Package – Includes Tinker LITE 7" or 10" dash pre-installed in a 3D printed insert.

• Performance Ready – Quick boot time, CANBUS communication, and built-in GPS (antenna included).

• Customizable Displays – 4 configurable layouts per pack, plus system overview and EGT page.

• Inputs & Outputs – 2 analog inputs, 2 resistance inputs, 4 logic outputs, and CAN switches.

• Driver Focused – Adjustable brightness, alarms, and customizable shift light.

• Street & Track Friendly – Integrated turn signal feature for road use.

• Simple Updates – Single SD card slot handles updates and configuration.

This is the ultimate digital dash upgrade for 1986–1993 Chevrolet S10, GMC Jimmy, and GMC Sonoma builds, offering a factory-style fit with modern data monitoring. Perfect for drag racing, pro-touring, or street trucks, it keeps your cockpit clean while putting real-time information front and center.

Compatible ECUs:

• AEM
• AIM-compatible CAN profiles
• Custom CAN (via manual config)
• ECU Master
• FOME
• FuelTech FT450, FT550, FT600
• Haltech Elite and Nexus series
• Holley Terminator X, Dominator, and HP
• Holley Sniper
• Link ECU
• MaxxECU
• MegaSquirt/MS3Pro
• Motec M1 and Mx00 series

Looking for a complete interior upgrade? Check out our 1986-1994 S10, Blazer, Jimmy Side AC Vent Block Offs to achieve a seamless, clean look.
