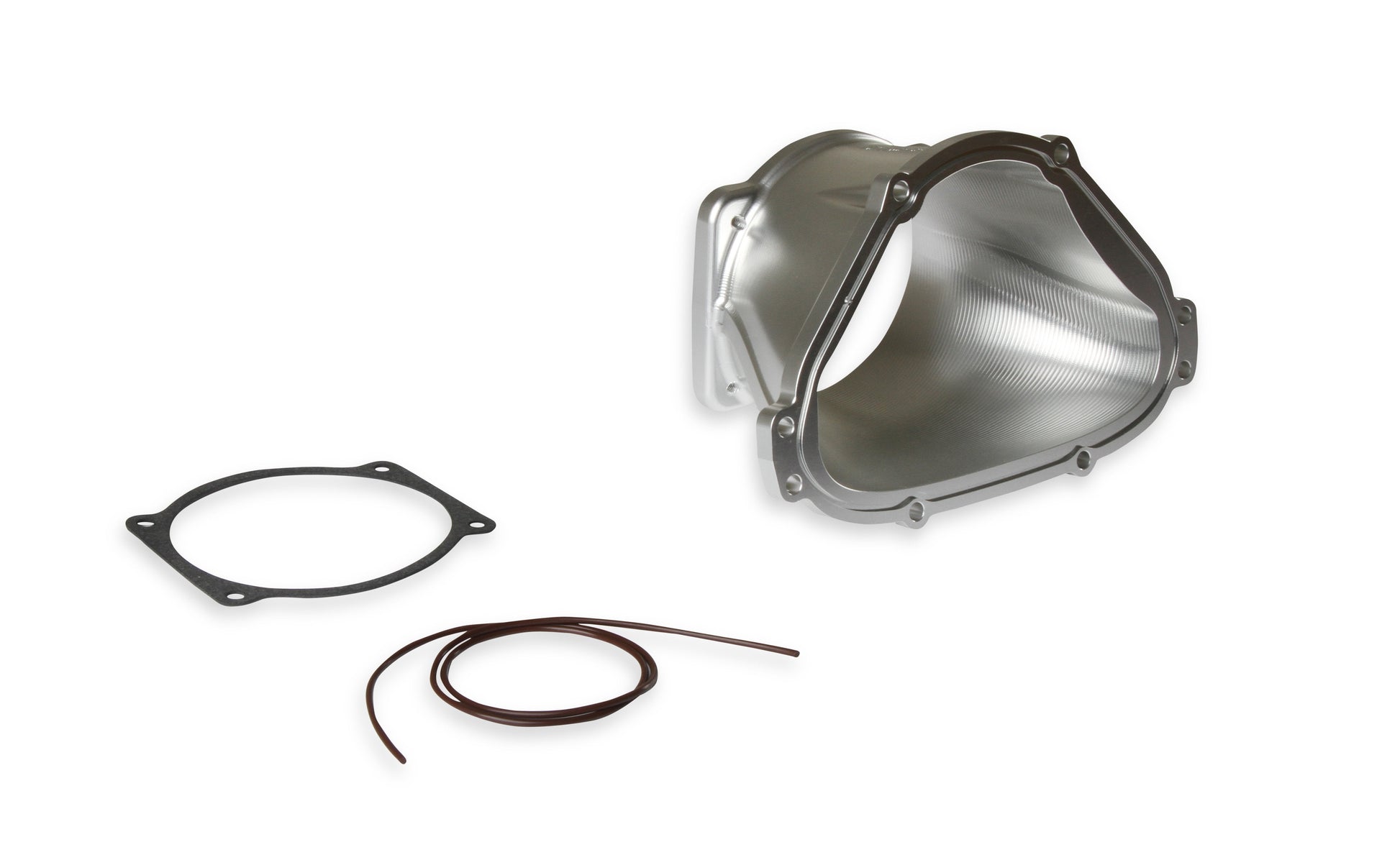

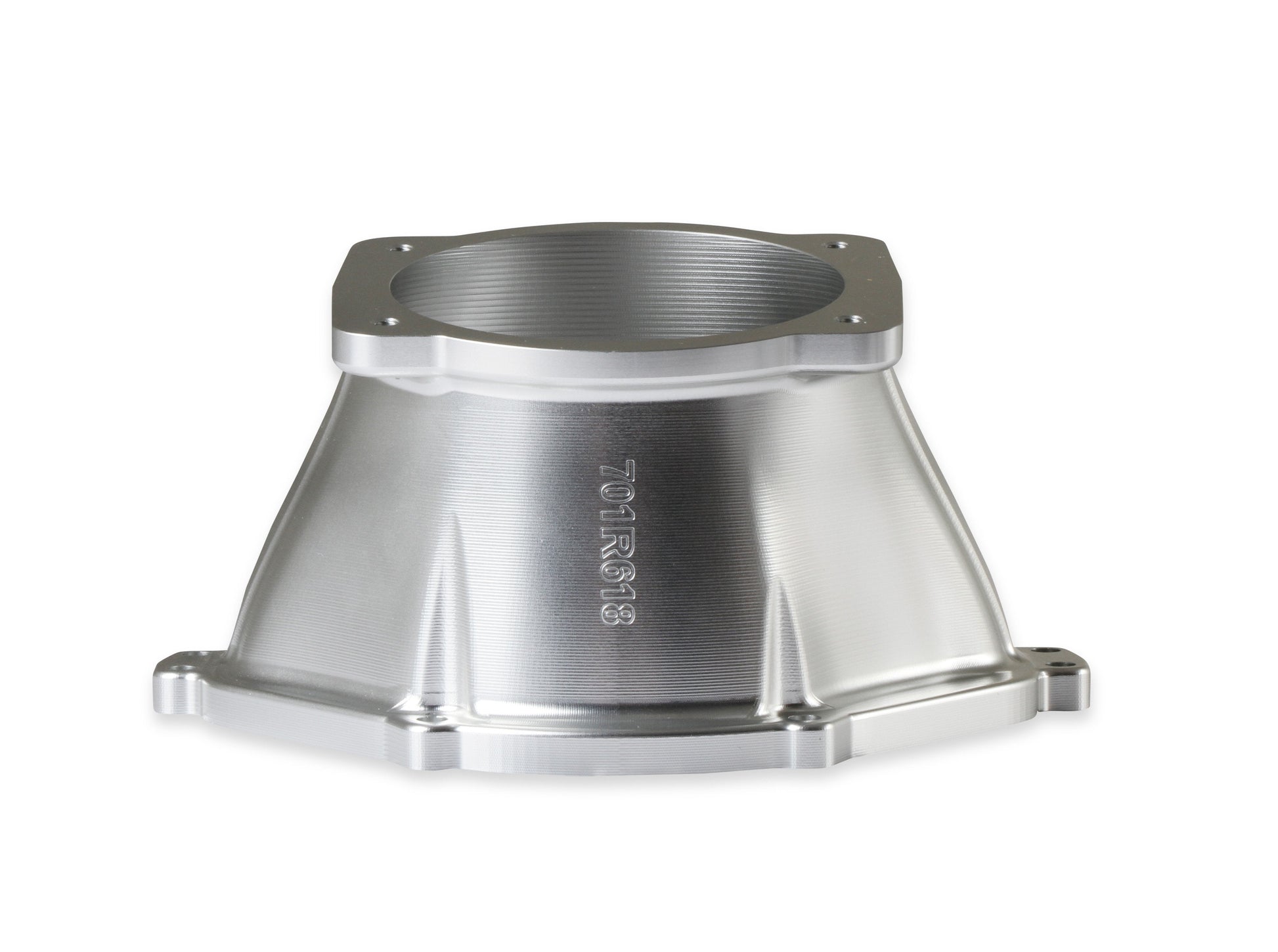

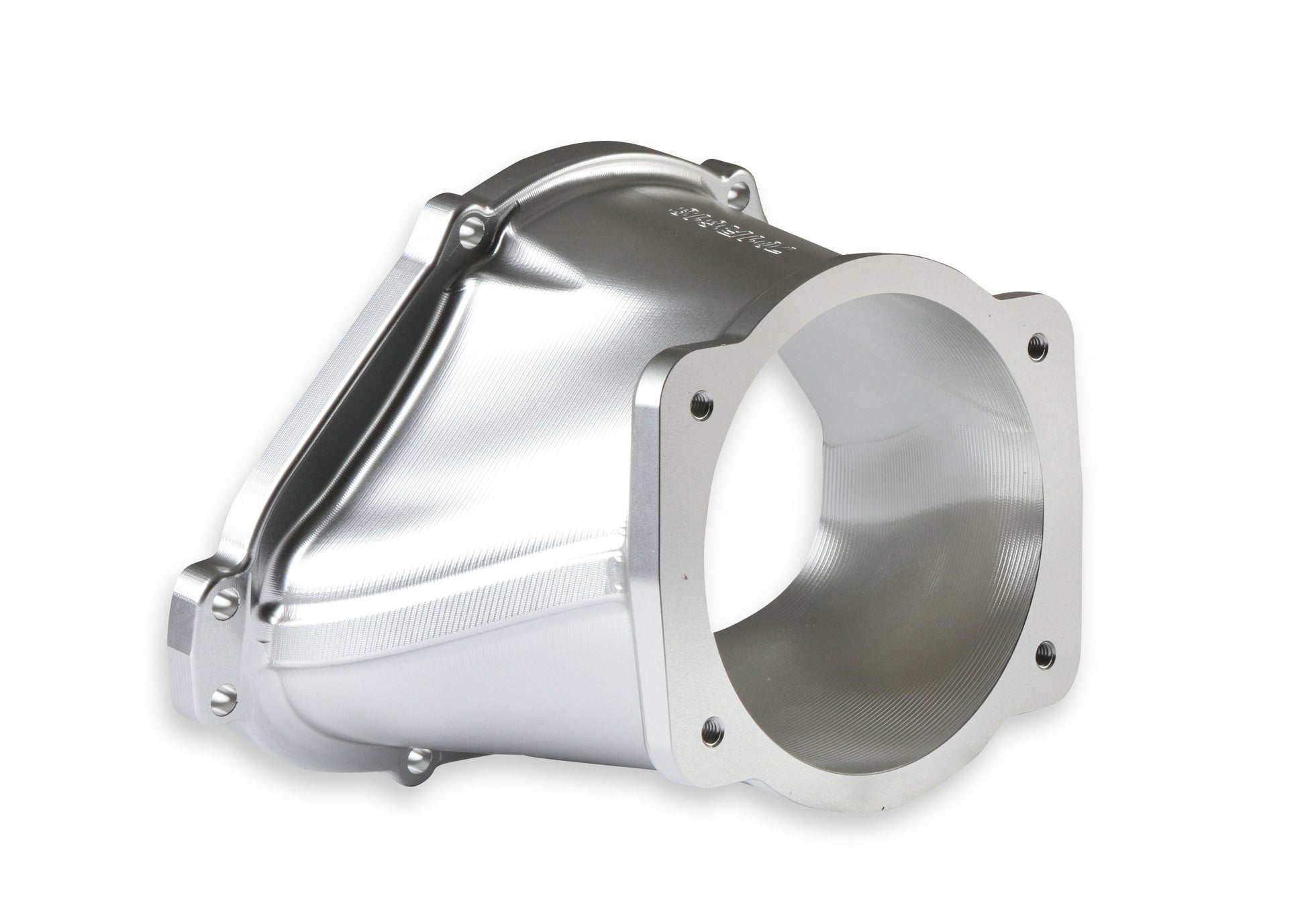

Billet Aluminum LS3 Ultra Lo-Ram 105 mm Throttle Body Adapter - LS3 Lo-Ram 105 mm Throttle Body Adapter

Holley Billet Aluminum LS3 Ultra Lo-Ram 105 mm Throttle Body Adapter

Ultra Lo-Ram Manifold Kit- Dual Injector with Burst Panel Flange

Overview
Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind. The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front entry plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front entry configuration. The LS3 Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 7.04 Plenum Configuration w/105mm Throttle Body Adapter - 5.67"

Features:

• Machined billet construction
• Clear/black anodized for long-term protection from elements and fuels
• Modular Lo-Ram design allows user customization for your induction system

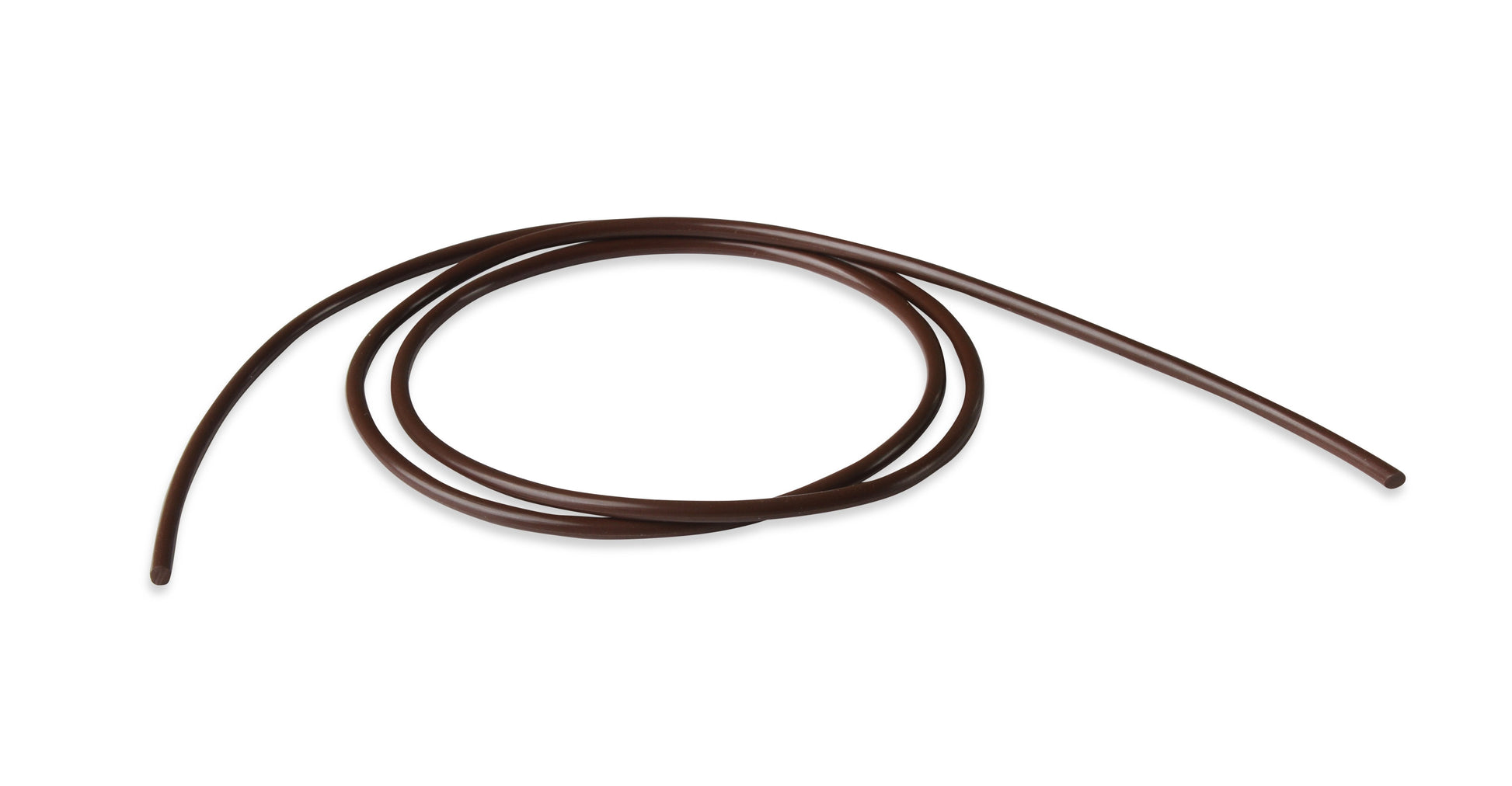

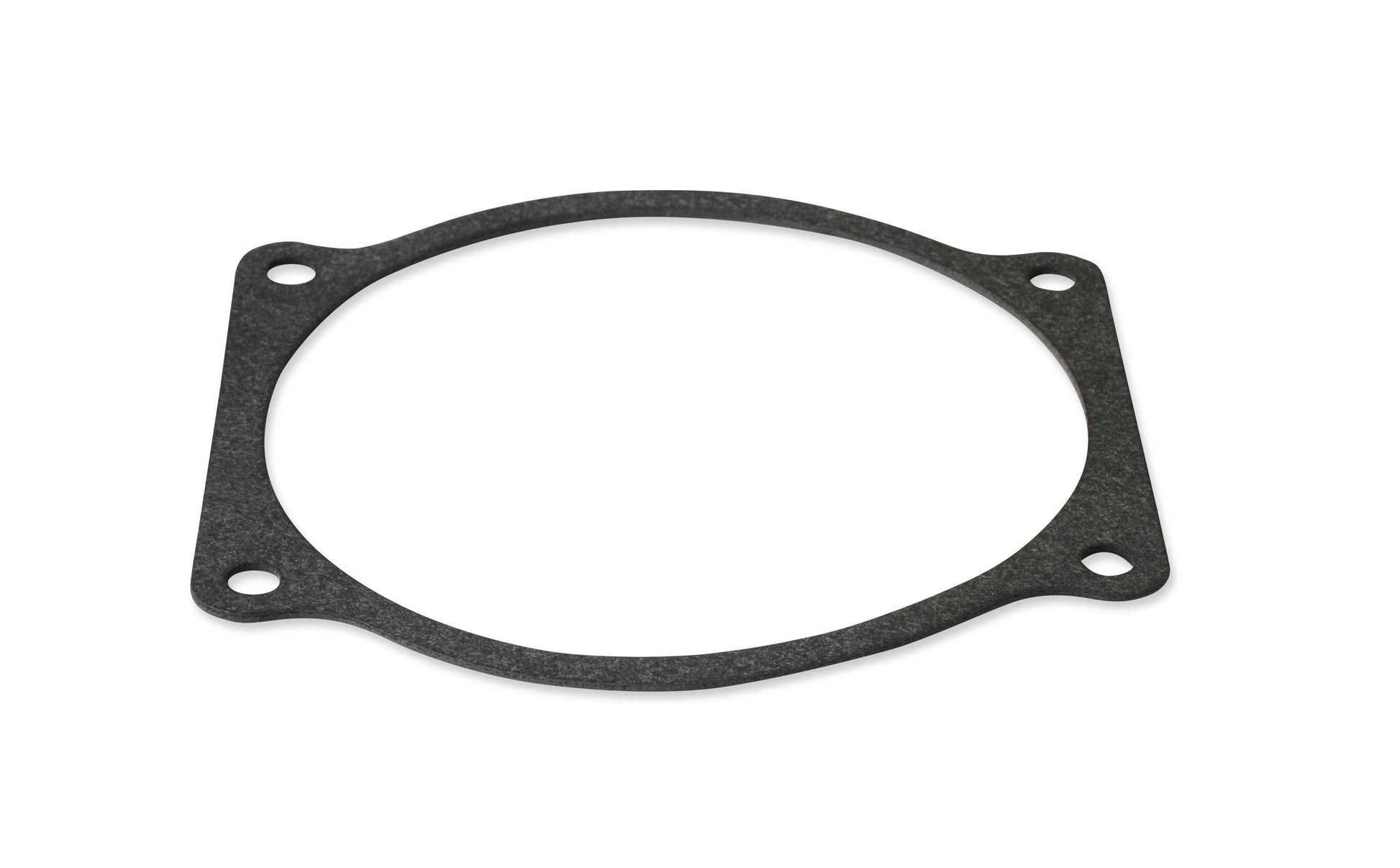

• Flange seal o-ring cord and the mounting fasteners are included in the kit
• Includes hardware

Details:

• Color: Silver
• Engine: GM LS3/L92
• Fuel System Type: EFI
• Manifold Type: Ultra Lo-Ram
• Warranty: Limited 90 Day

Links
Instruction Sheet
