Fore Innovations

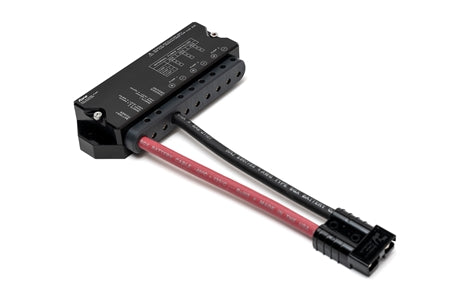

FC3 Dual/Triple Pump Staged Controller
FC3 Dual/Triple Pump Staged Controller
Regular price
$274.00 USD
Regular price
Sale price
$274.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FUSE SELECTION
30A - Recommended for pumps F90000285 / 295
30A - Recommended for pumps F90000285 / 295
- Two stage electrical solution for dual or triple pump return fuel systems for efficient load handling and power distribution
- Simple trigger system works with basic switched 12V+ on/off (6.5V+ minimum)
- Run 1,2, or 3 pumps full time, with remaining pumps activated on demand (requires external switch, i.e. Hobbs, RPM, etc)
- 30 amp x 3 capacity, 99.3% efficient
- Replaceable internal fuses for each pump
- May also be used on other DC motors such as intercooler, water (check current requirements)
- NEW High Current APP® connectors pre-installed on main power/ground wires for maximum connection integrity and reliability
AVAILABLE CONFIGURATIONS
- Basic: comes with unassembled APP® connector for main power and ground
- Add Main Power and Ground Harness: 15' 4 AWG power, 3' 4 AWG ground assembled to APP® power connector with 100A inline fuse.
- Add Pump Pigtails: three pairs of 7' 12 AWG pump wires assembled to Delphi pump connectors and unassembled male Delphi connectors
WARNINGS
- Do not operate with over 16.5V supplied power
- For interior installation only
- Run only one pump per output (three maximum)
ACCESSORIES
Honeywell Pressure Switch
Replacement 4 AWG APP® main power connector, unassembled
