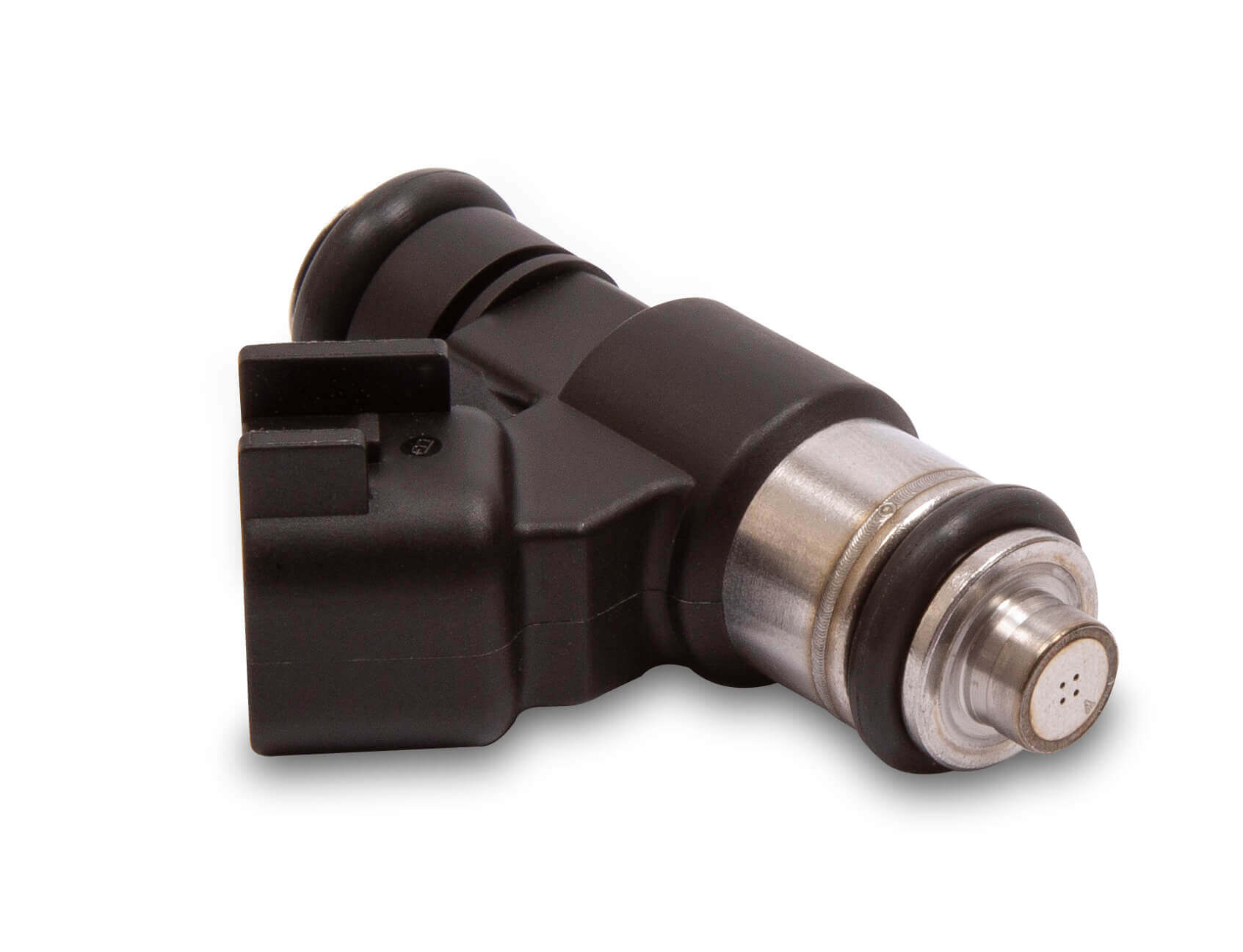

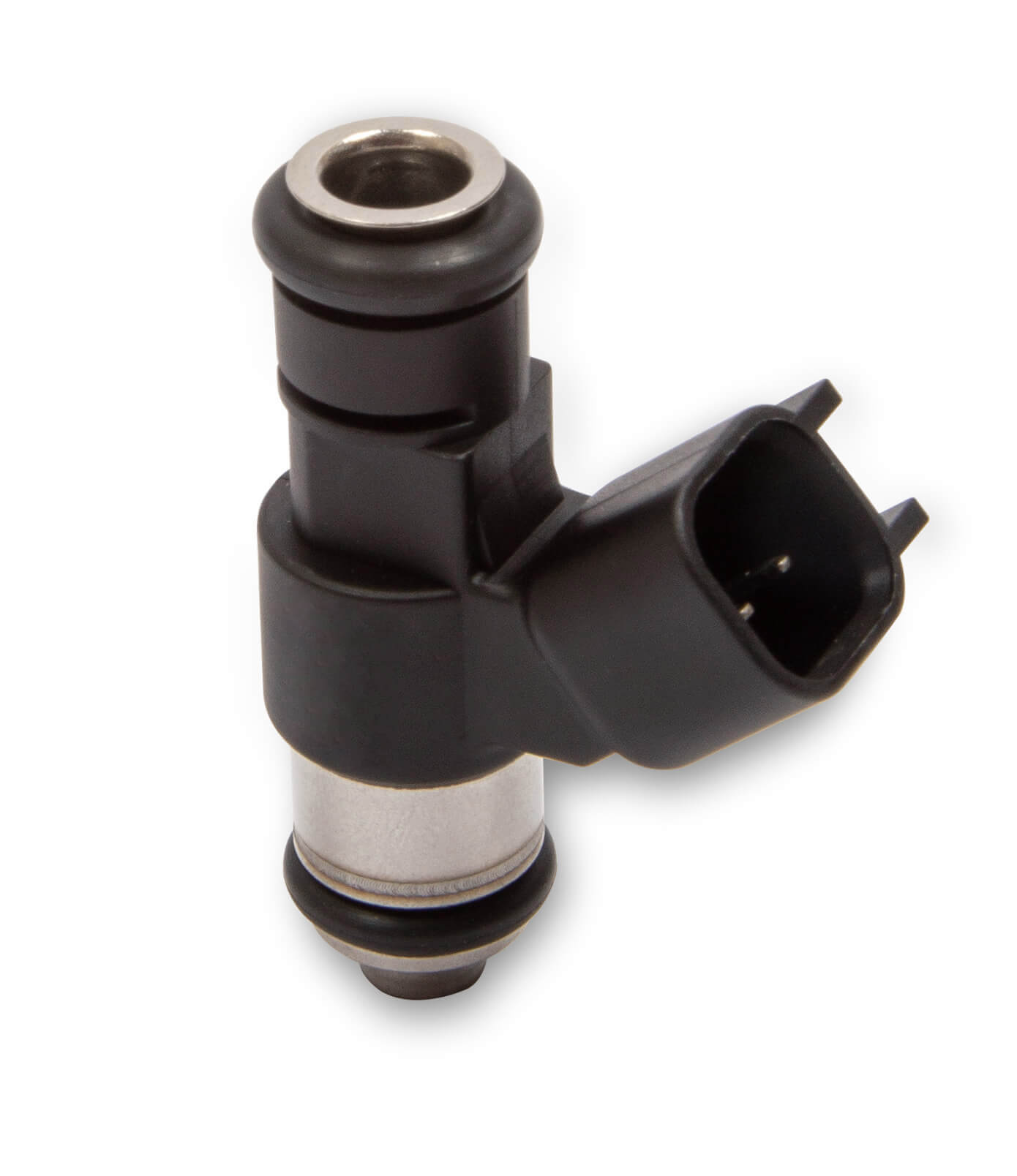

Flow Matched 220PPH Fuel Injector Kit - Eight Pack

Flow Matched 220PPH Fuel Injector Kit - Eight Pack

PICO/EV6 - 220 lb/hr - High Impedance

Overview
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

These injectors are rated at 43psi base fuel pressure. High Base Fuel Pressure is not recommended.

Features:

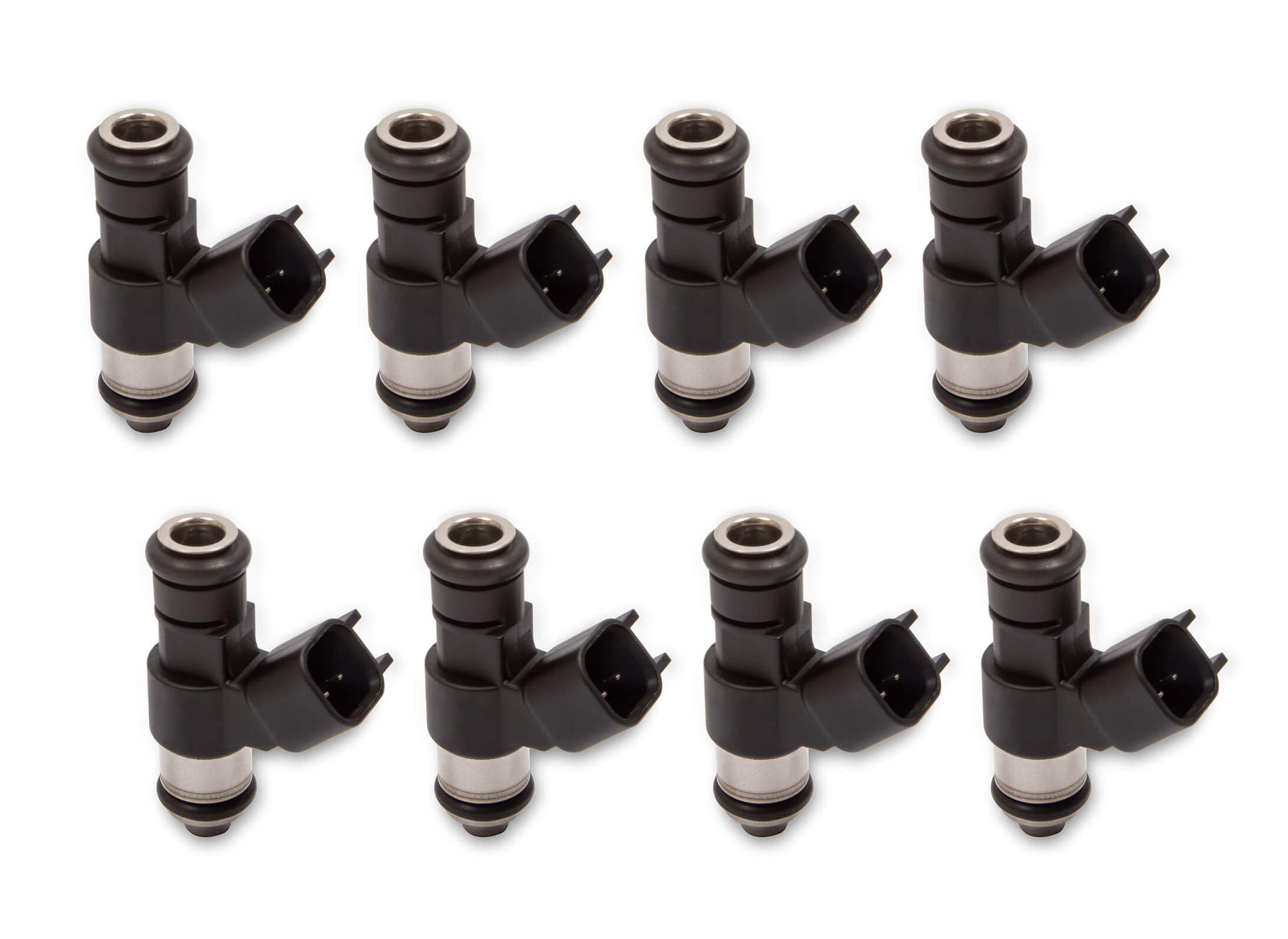

• PICO/EV6 style performance injectors - Set of 8
• Dynamic Flow Matched within 1%
• High impedance for use with saturated drivers
• 220lb/hr injectors rated at 43psi base pressure
• 40mm o-ring to o-ring length
• Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
• Injector Off Time provided in the Holley EFI software

Details:

• Body Diameter: 0.65
• Body Length: 1.85"
• Body Style: EV6
• Connector Series: USCAR - EV6
• Fuel Type: E-85
• Fuel Type: Gasoline
• Fuel Type: Methanol
• Impedance: High (12.2 Ohm)
• O-Ring to O-Ring: 1.421
• Rated Injector Flow: 220 lb/hr
