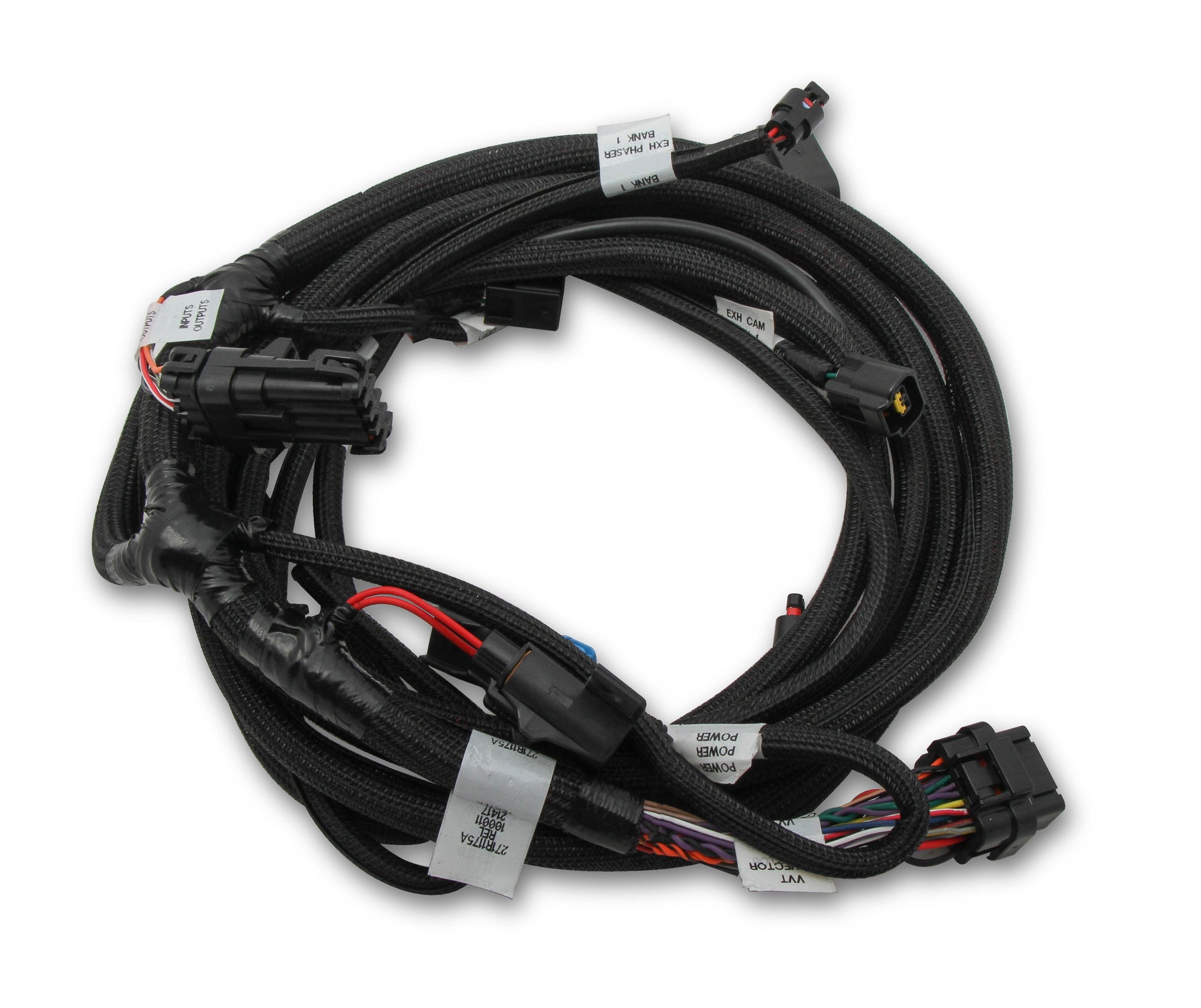

Holley EFI Ford Coyote Ti-VCT Sub Harness (2011-2012)

Holley EFI Ford Coyote Ti-VCT Sub Harness (2011-2012)

Coyote Ti-VCT Main Harness for 2011-2017 Coyote Engines using Holley EFI HP smart coils

Overview
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.

Requires MAP Sensor P/N 538-24 Designed to be used with Holley EFI Smart Coil Kit: 556-127 or 556-128 Or Holley EFI Smart Coil Harness: 558-312 or 558-318 and Holley EFI HP Smart Coils - 556-112 When utilizing this Harness with Ti-VCT applications the following parts are required: 554-145 Coyote Ti-VCT Controller, and supporting Harnesses.

Features:

• Compatible with HP or Dominator EFI
• Ti-VCT Cam control down to 400 RPM
• Designed for Stock Camshafts Profiles
• Commanded Timing matched within 1 degree
• 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
• Integrated Stock Cam Position Tables ?????ú????????????ú????ª?????ú???????????????????ú??????????????ú?????????????????ú?????????ú??«?ë?????ú????????????ú????ª?????ú?????????????????ú?????????ú??«?ë?????ú??????????????Ñ???????ú??????????????????????ª?????ú?????????????????ú????ª?????ú??????????????ú??????????????Ñ?????ú????????????ª?????ú????????????ú????ª?????ú?????????????????ú??¡?????ú??????????????Ñ???????ú??????????????????????ª?????ú??????????????Ñ?? eliminate tuning guess work, optimal drive-ability and power right out of the box
• Installation of an external MAP sensor is required, we recommend part number 538-24 for N/A applications
• CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
• Pre-calibrated Ford sensor drop downs in the Holley EFI Software
• Plug and Play Ti-VCT Sub Harness designed specifically for 2011-2012 Coyote Engines

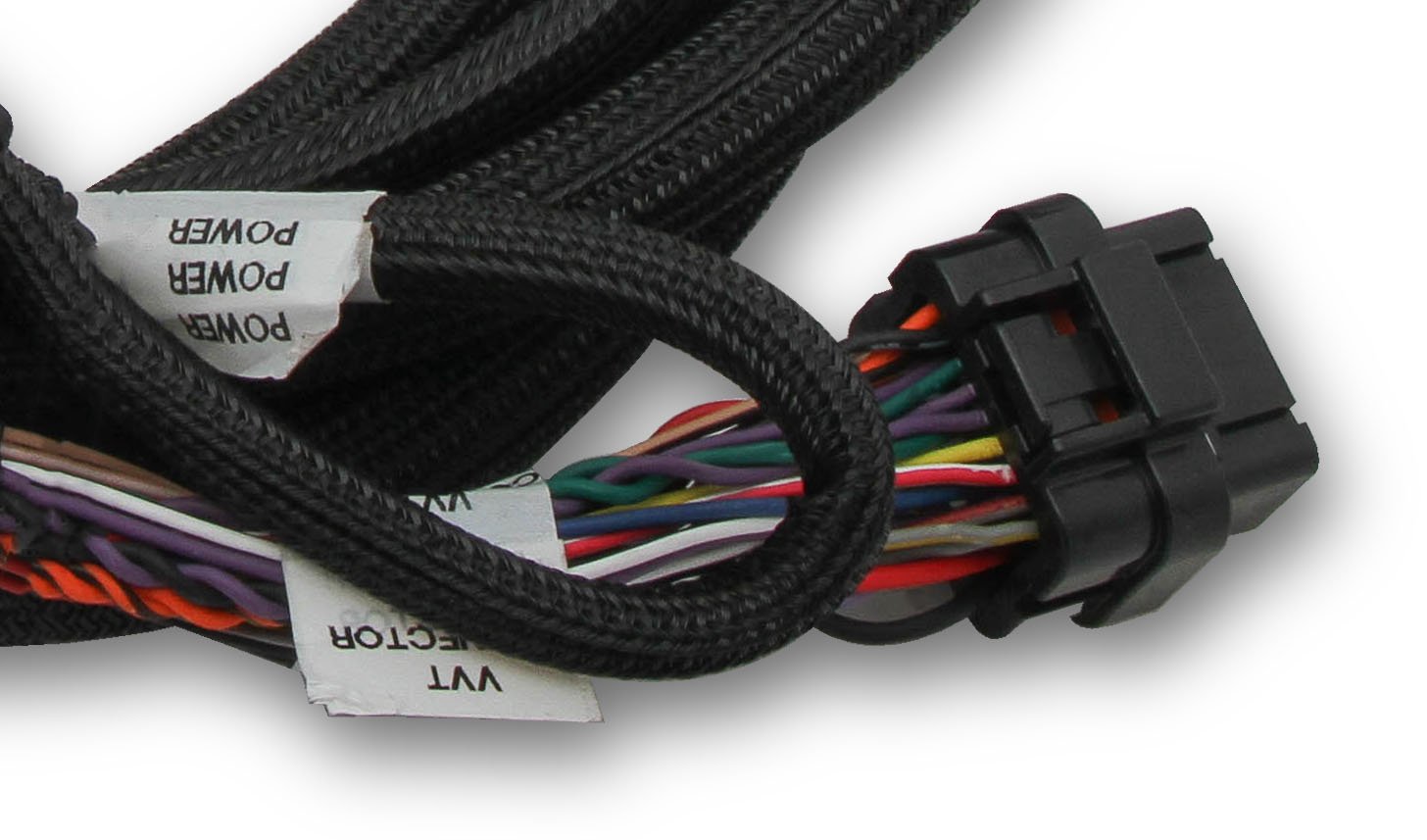

• Connectors are labeled for easy identification

Details:

• Harness Application: Ford
• Harness Type: Ignition
