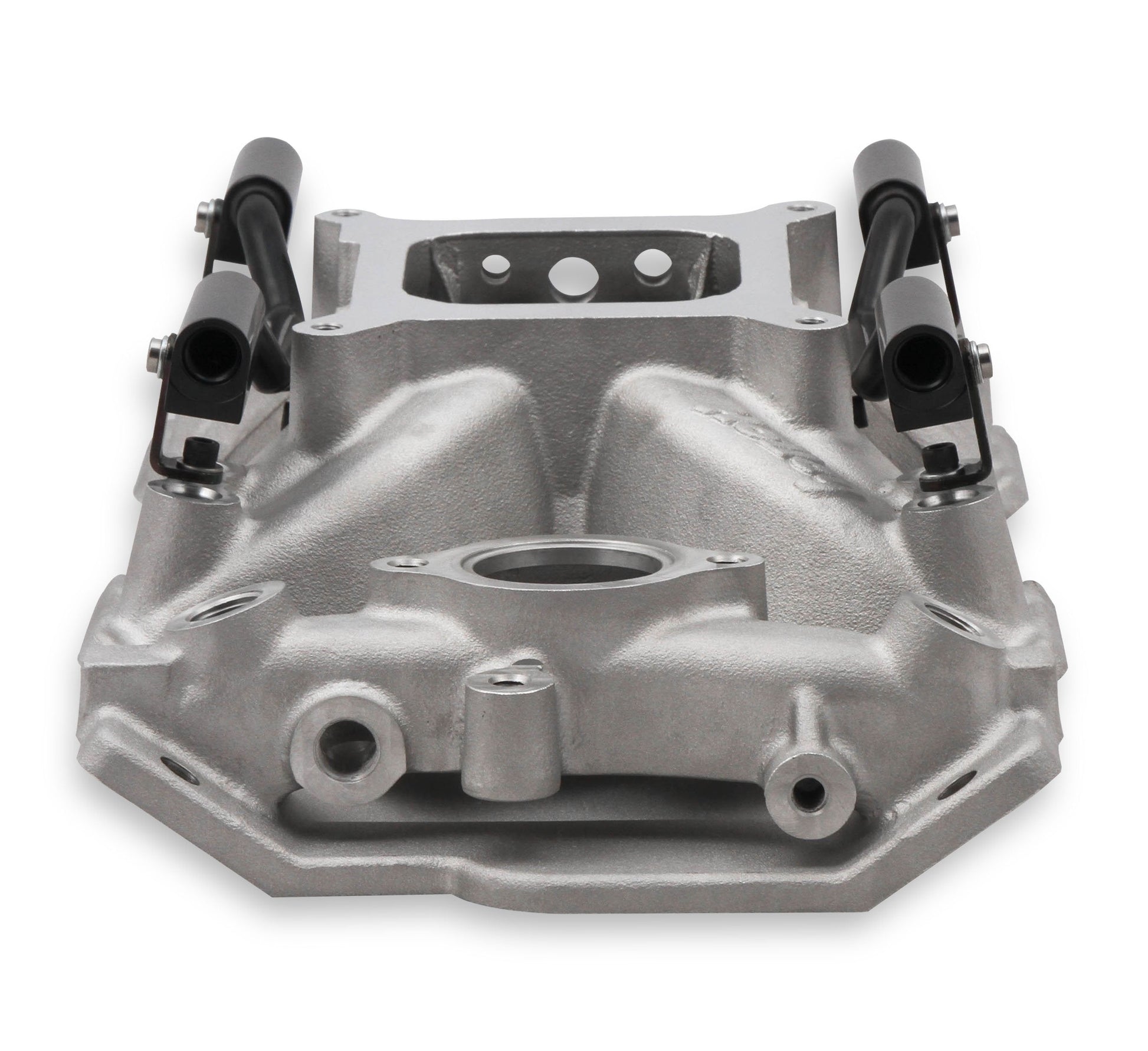

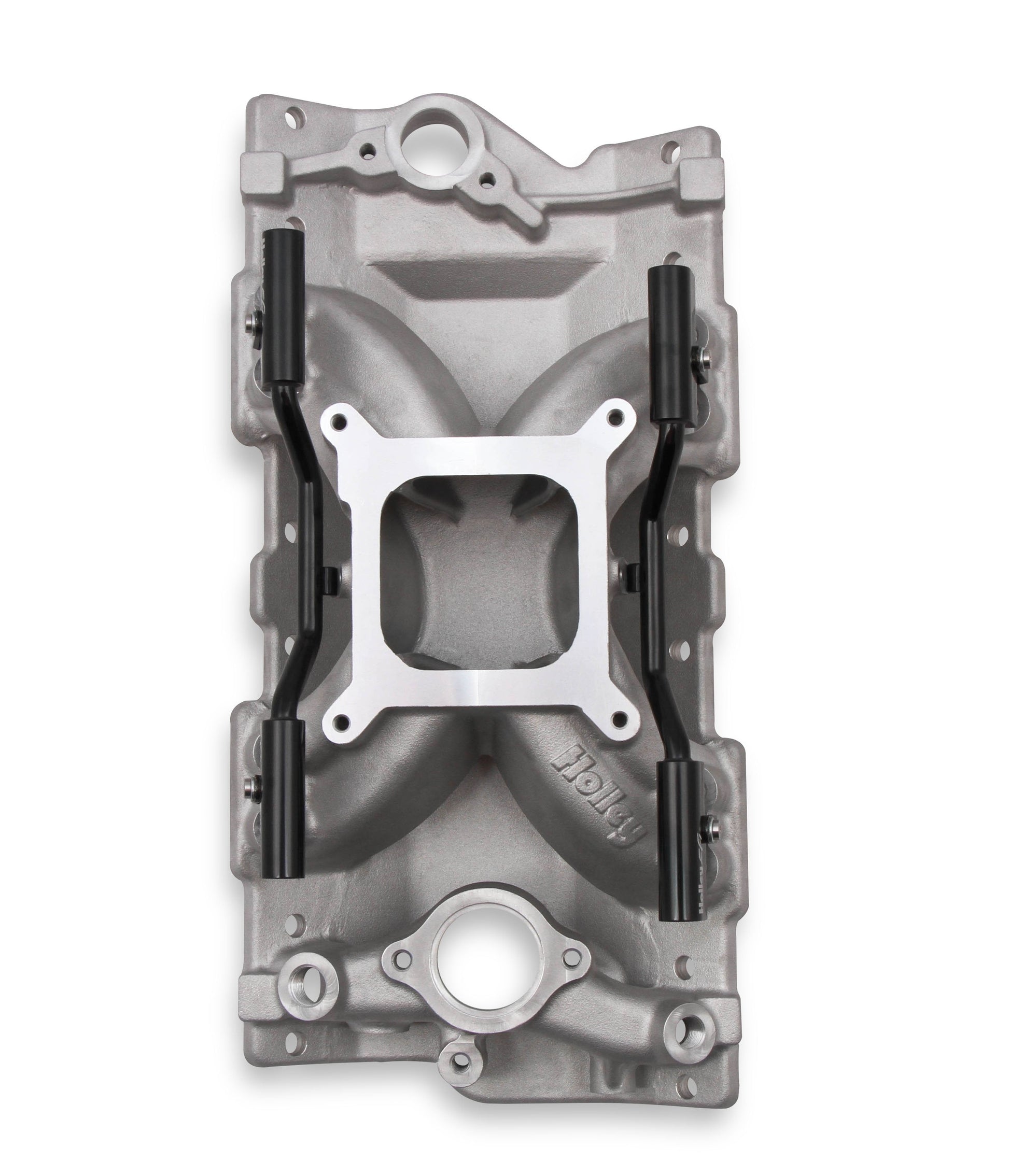

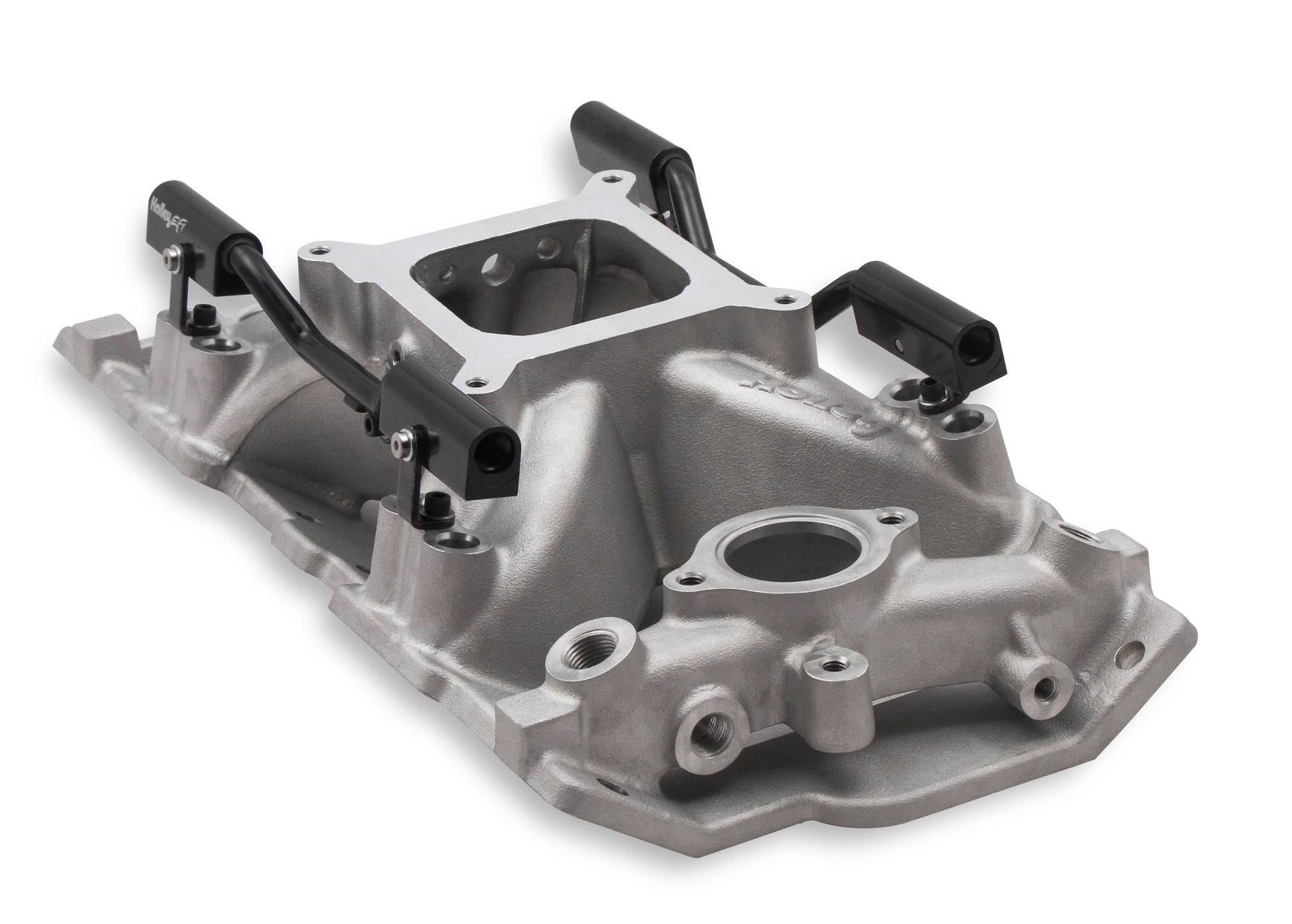

Holley EFI SBC 4150 Single Plane Fuel Injection Intake Manifold - Chevy Small Block V8
EFI Throttle Body Intake Elbow 4500 - Fits 86-95 Ford 5.0 Style Throttle Bodies. Black Finish
Overview These machined billet aluminum EFI intake elbows allow the use of Ford throttle bodies on any intake manifold w/ the 4500 mounting flange. Our design incorporates an optimized transition from the throttle body to the intake plenum for maximum airflow and distribution. Dual throttle cable mounting bracket bosses are included while the 4500 flange pattern allow the elbow throttle body to be mounted forward, sideways, or rearward. The throttle bracket is included.
Features (4) vacuum ports, MAP sensor port, machined / port matched to 4500 gasket, and 100?? throttle body angle for extra hood clearance. Includes billet MAP sensor port cover, gaskets hardware. The port design spacing will also allow a transducer to be used if a MAP sensor is not needed. The intake flange has an o-ring groove for a positive flange seal and the o-ring is included as well.
Features:

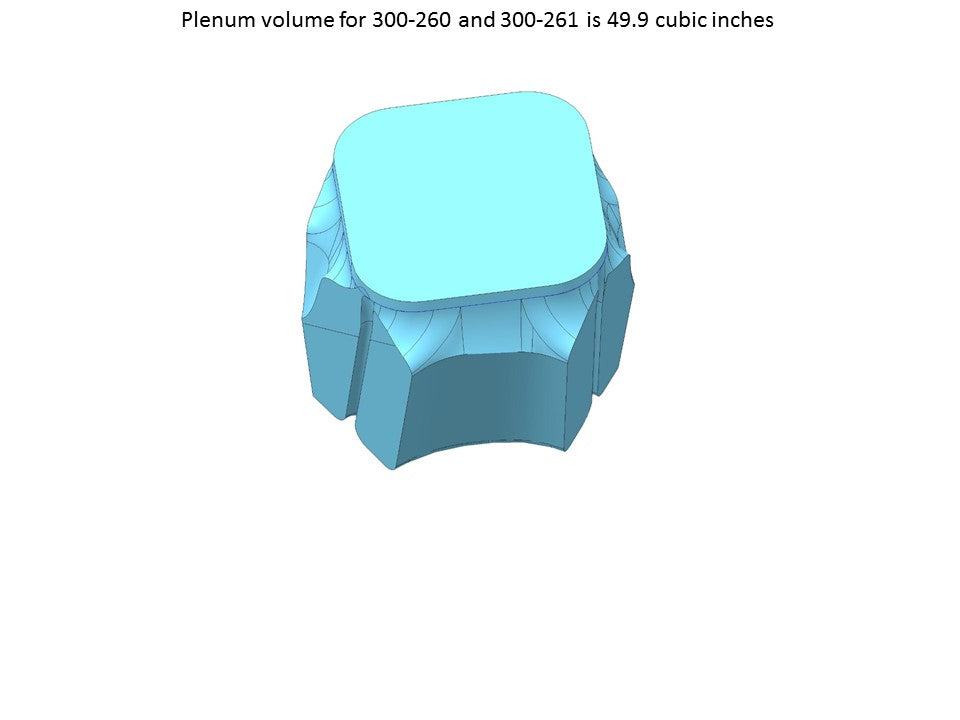

Single Plane Design with isolated Plenum
4150 Square Bore Mounting Flange
Power band: 2500-7500 RPM

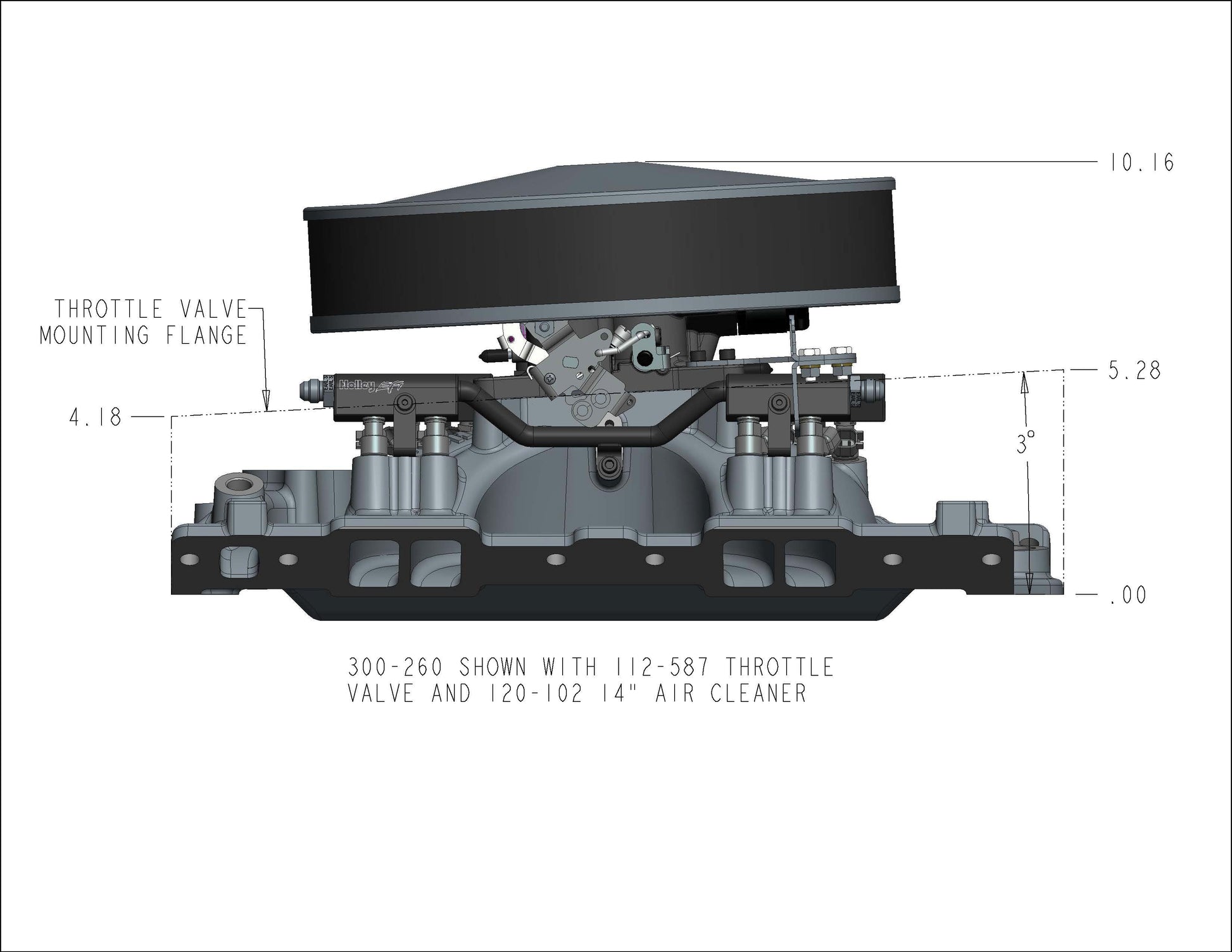

Height: Front 4.18", Rear 5.28"

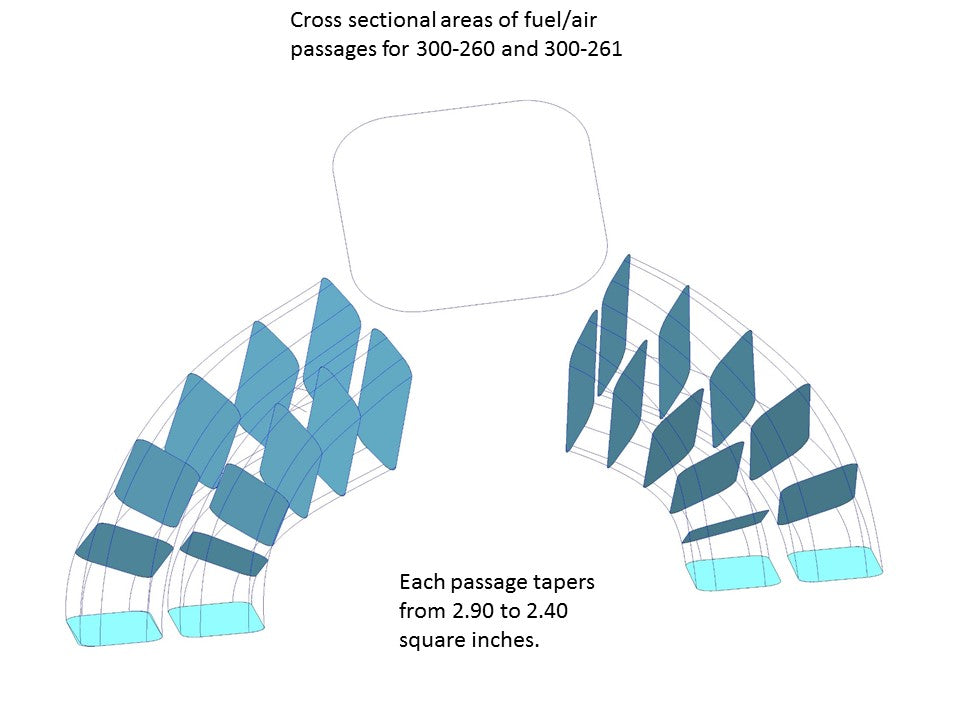

Port Size: 1.92??? height 1.20" width
Lower Throttle Body Mounting height to help with hood clearance.

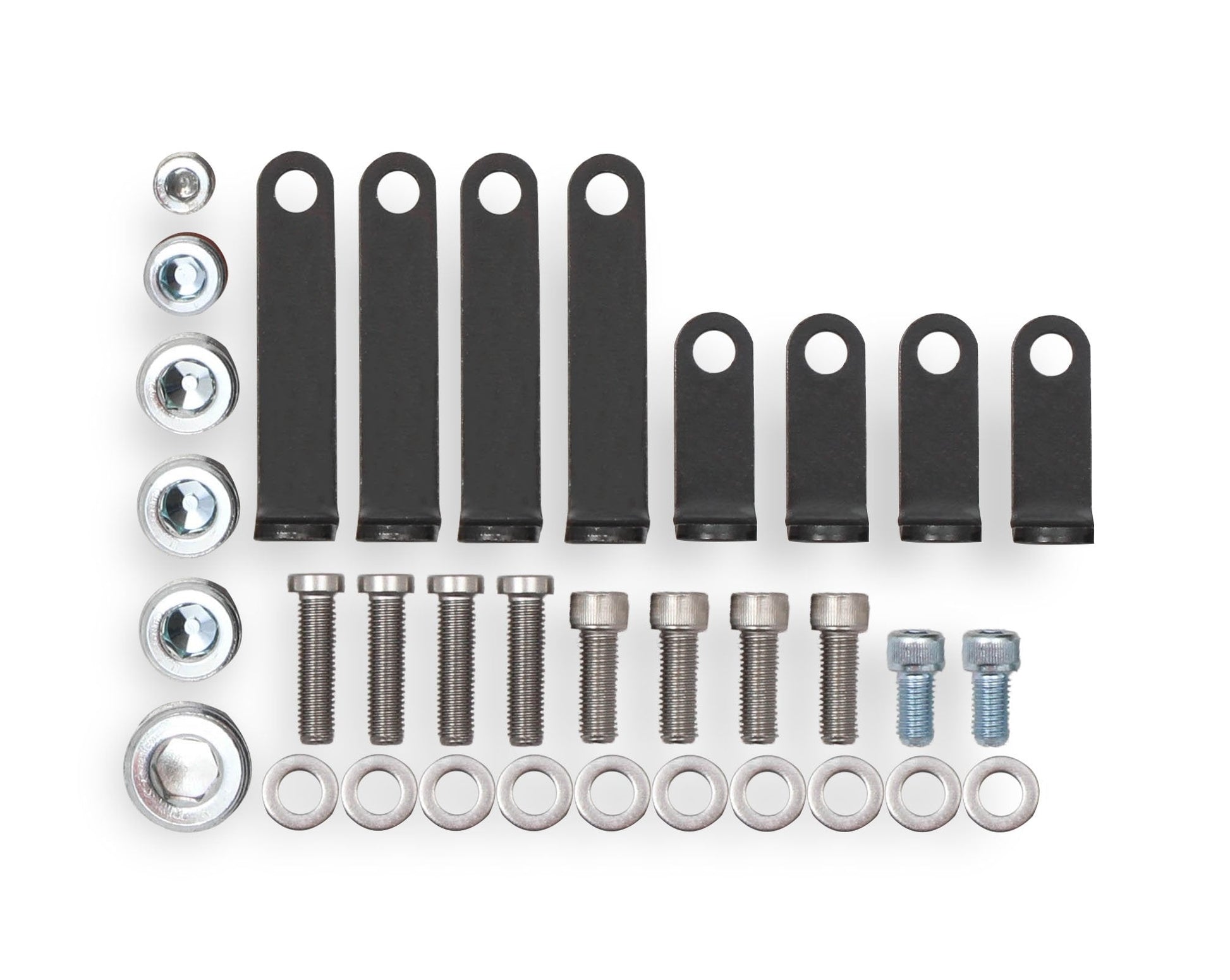

Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
Fuel injectors are not included

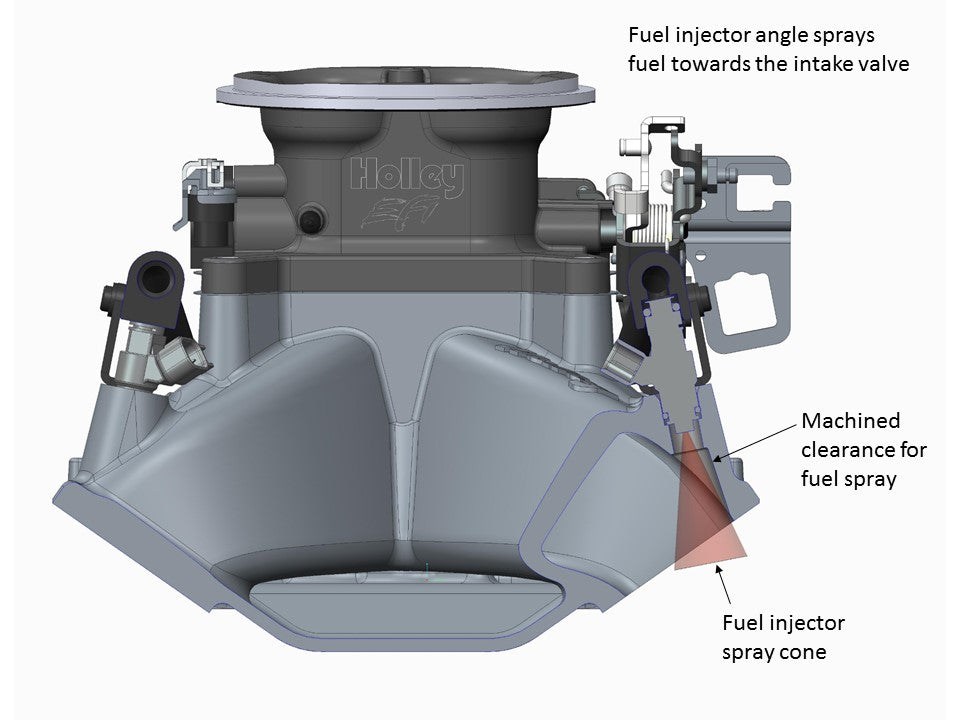

Fuel rail designed for maximum throttle lever clearance.
