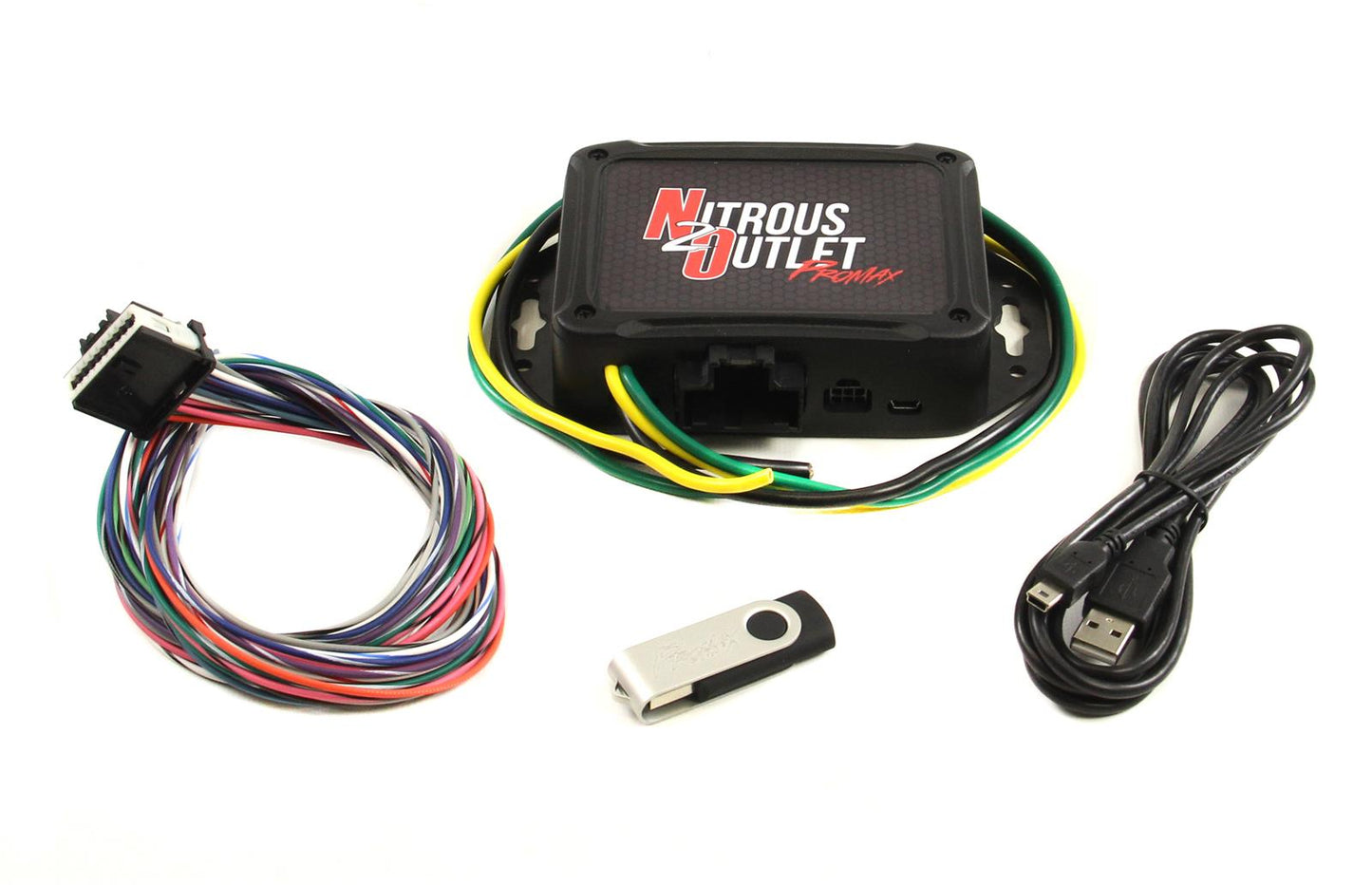

Nitrous Outlet ProMax Dual-Channel Progressive Controllers 00-61002

Nitrous Controller, ProMax, Progressive Controller, Each

Nitrous Outlet ProMax Dual-Channel Progressive Controllers

Nitrous Outlet ProMax Dual-Channel Progressive Controllers incorporate the system activation and safety functions of the WinMax—but adds numerous tuning and traction features that help you get the most out of your nitrous system. With the ProMax you can set rpm, time-based, or boost referencing progressive ramps for multiple stages while integrating wideband inputs.

Additional features and benefits include:

* Inputs for vehicle speed, trans-brake, MAP sensor, two wideband oxygen sensors, two nitrous pressure sensors, and one fuel pressure sensor
* Two built-in 70 amp solenoid drivers can control two stages independently, or can be configured for closed-loop fuel control based on wideband oxygen input—with nitrous on one output and fuel on the second output
* Progressive stage controls allow: adjustable frequency output of 10-30 Hz (by 1 Hz) for driving solenoids
* Ability to be configured to vary solenoid duty cycle as a function of time, throttle percent (TPS), engine rpm, vehicle speed, manifold pressure (MAP)
* Ability to set response of stage based on secondary arm switch input (arm/disarm)
* Resume and restart feature option for controller—to resume an interrupted time-based ramp or start over based on TPS going out of range
* Built-in rpm window switch with gear lockout feature
* TPS or WOT switch activation
* Data logging capable
* Updateable Firmware
* CAN Bus output
* Two ignition retard outputs
* Simple USB connection to PC/laptop
* Optional 4.3 in. full touch screen display allows viewing of real-time data
* Saved data logs can only be viewed on PC/laptop
* Can save up to five different tuneups
* Controller can be programmed via PC/laptop or optional display
