Sniper EFI 3.5" Handheld Controller

Sniper EFI 3.5" Handheld Controller

For Sniper 2 applications (Handheld not included)

Overview
The Sniper Transmission Controller (STC) is designed for common GM and Ford electronic 4-speed transmissions. Three part numbers cover a complete range of applications - all Sniper EFI systems, Sniper 2 EFI specific (M8 CAN connection), or a full standalone unit. The Sniper specific applications connect to your Sniper EFI system via CAN bus and is programmed through the existing Sniper 3.5-inch touchscreen. No programming is available with PC computer software, however the transmission functions can be data-logged and reviewed with Sniper PC software. The Standalone version includes a dedicated 3.5-inch touchscreen and is primarily intended for carbureted engine combinations. GM and Ford four speed electronic overdrive transmissions are simple in operation. They have four speeds with the top gear being an overdrive and all have a lockup torque converter that eliminates any slippage when the lockup is applied. With a stock torque converter the lockup should only be applied under light throttle conditions or excessive wear will occur. Upshifts, downshifts, and torque converter lockup are based on vehicle speed and throttle position (or optionally the MAP sensor) and are adjustable with the 3.5-inch touchscreen

*Handheld not included

Features:

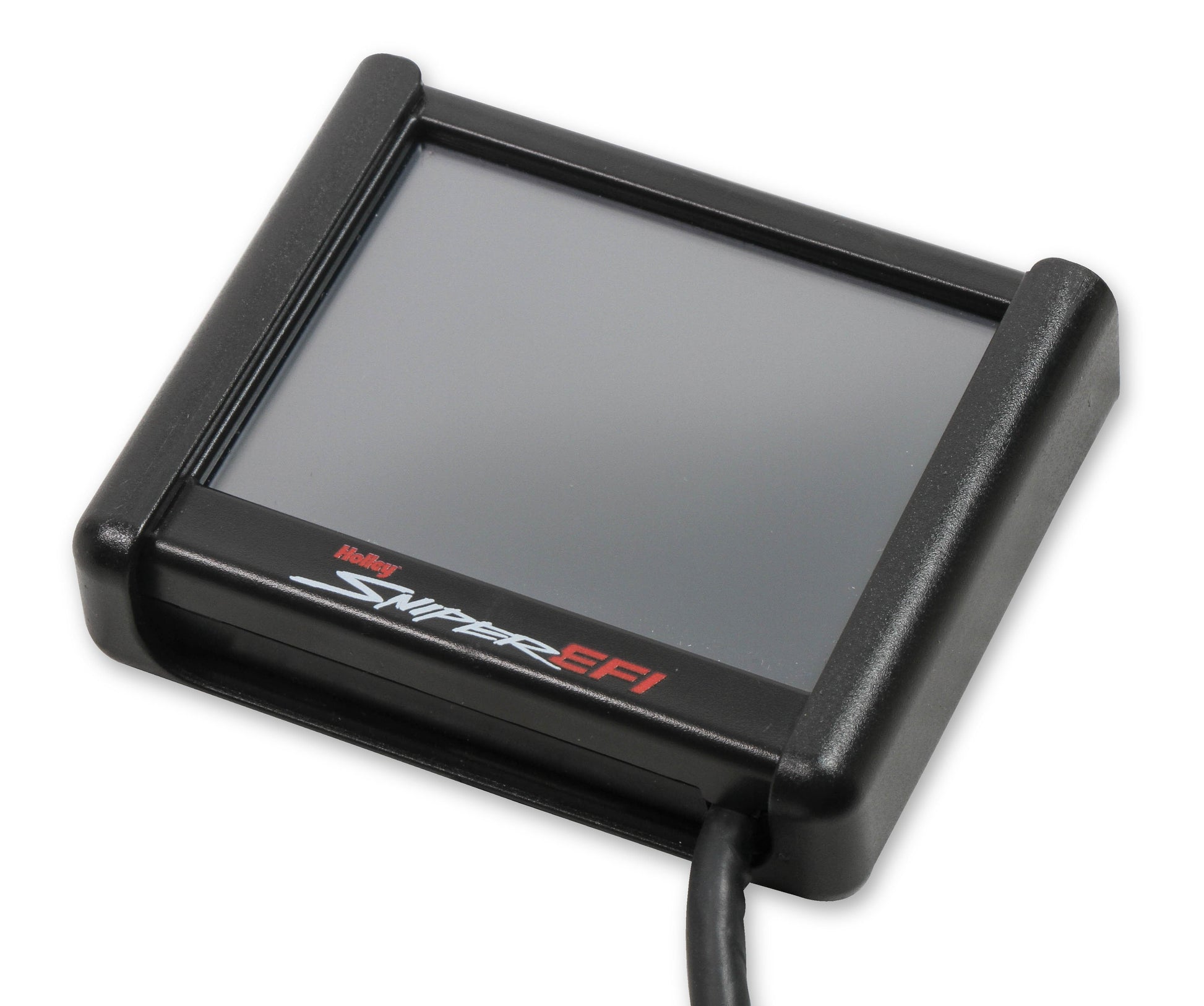

• Full Color, Backlit 3.5??? Touch Screen LCD
• Laptop-Free Tuning changes to help optimize mileage, driveability and performance
• Basic Tuning options allow simple adjustments of Basic Fuel, Fuel Learn, Basic Idle, Spark, and More!
• System Tuning options allow modifications to Outputs, Engine Setup, Ignition Setup
• Advanced Tuning options allow fine tuning of Fuel, Closed Loop, Learn, and Idle (including IAC parameters and Idle Spark)
• Monitor a vast number of Parameters in Pre-Configured Multi-Gauge and Monitor Screens, or customize your own
• Set up ECU Datalogging, Download Datalogs to SD Card, Upload and Download Global Folders via SD Card, Update ECU Firmware and Adjust Rev Limiters 1 and 2

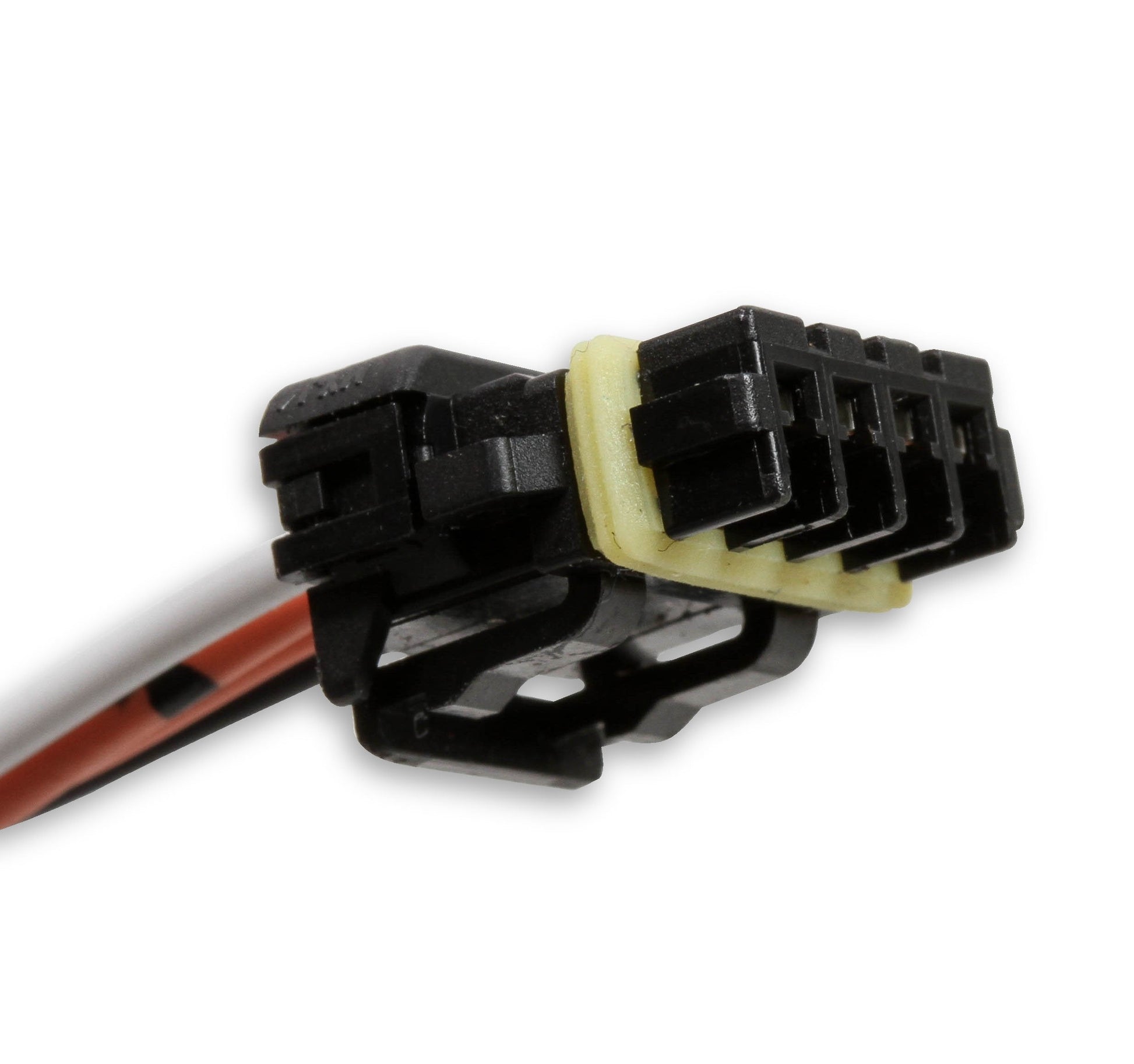

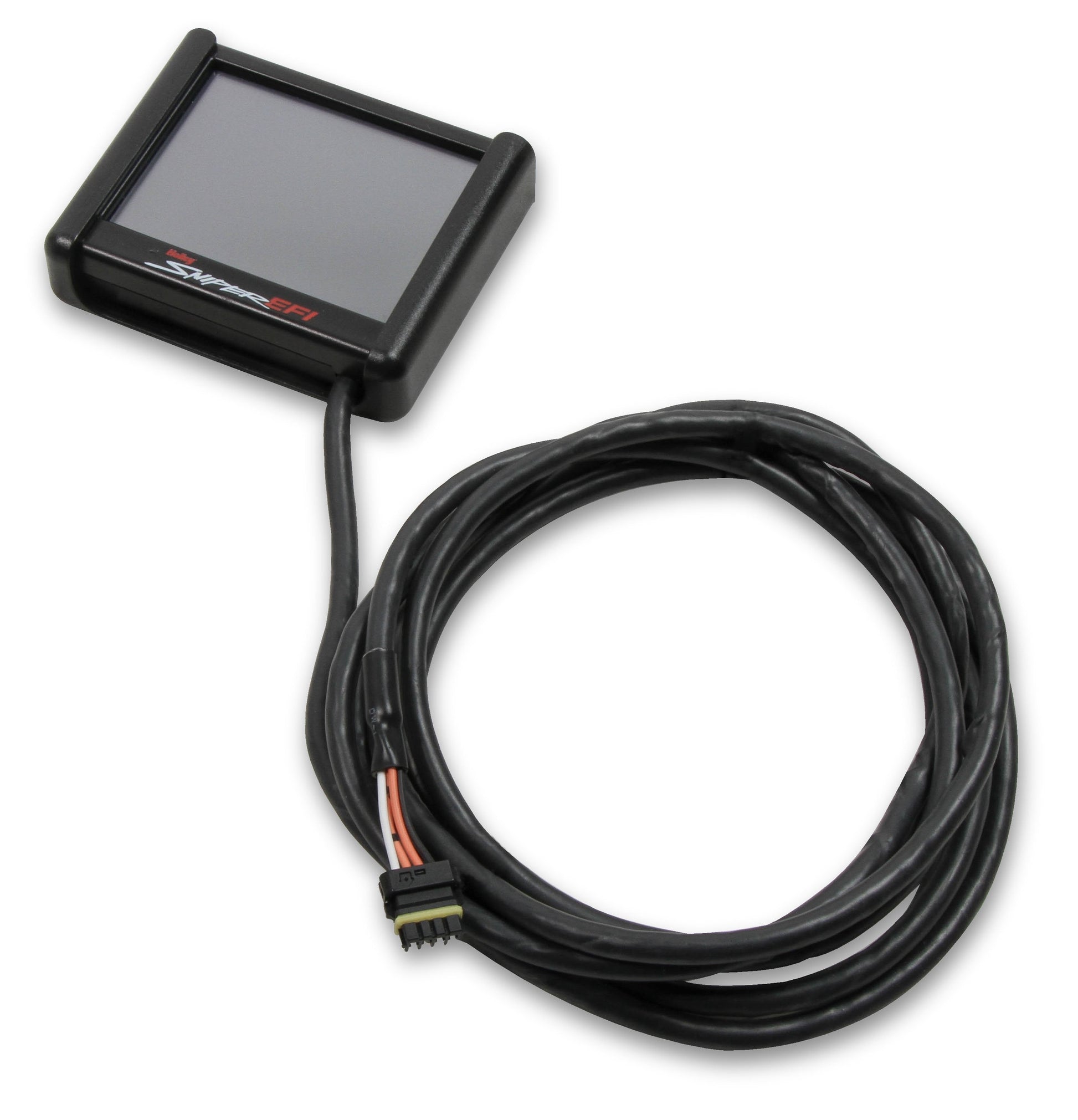

• Includes 3.5??? Touch Screen, Mounting Sleeve, Power and Extension Harness, SD Card, and User Manual CD
• Screen Dimensions: 3.35w x 2.85h x .70" thick

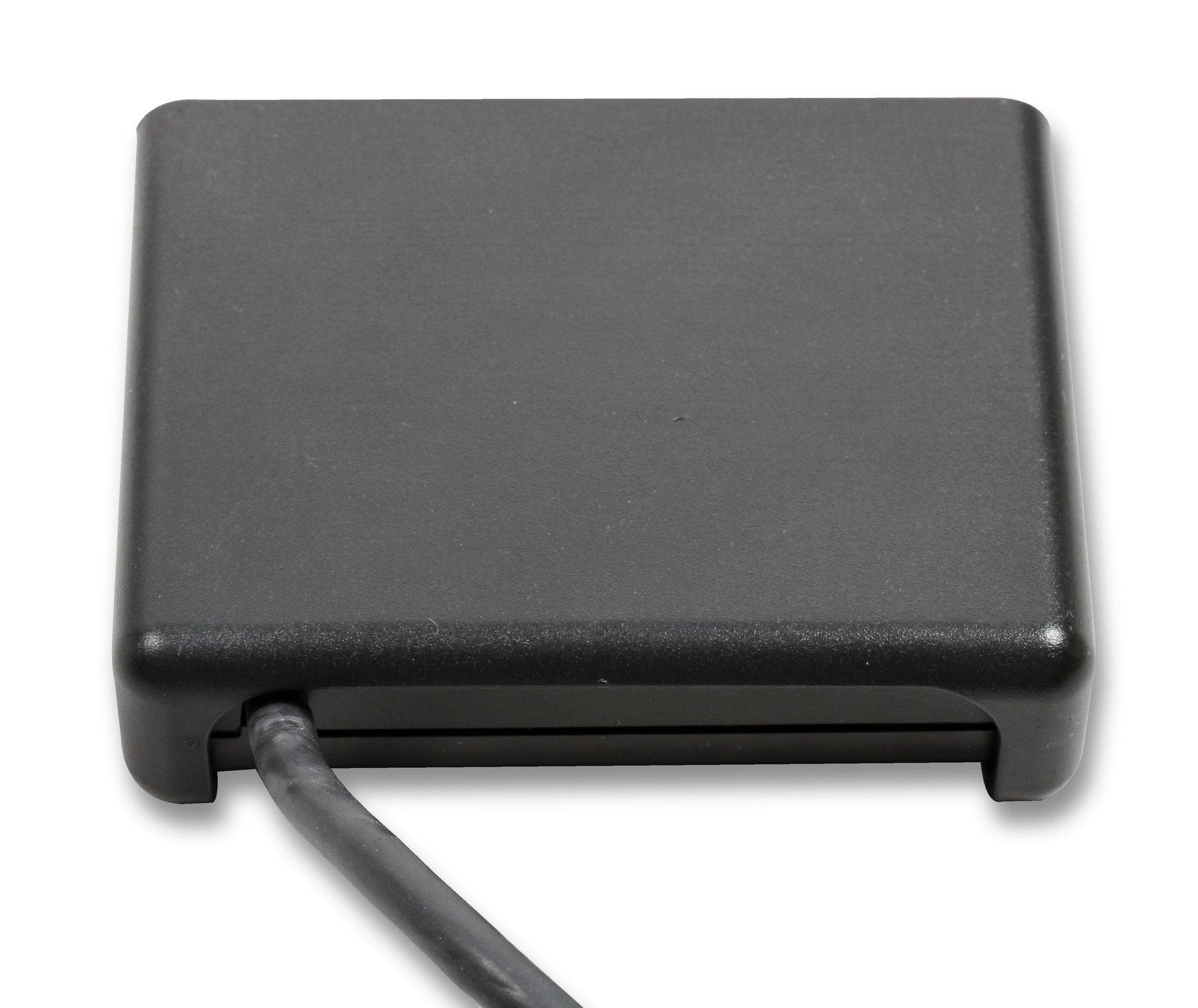

• Sleeve Dimensions: 3.625w x 2.925h x 1.00" thick

Details:

• Size: 3.5'' Screen
