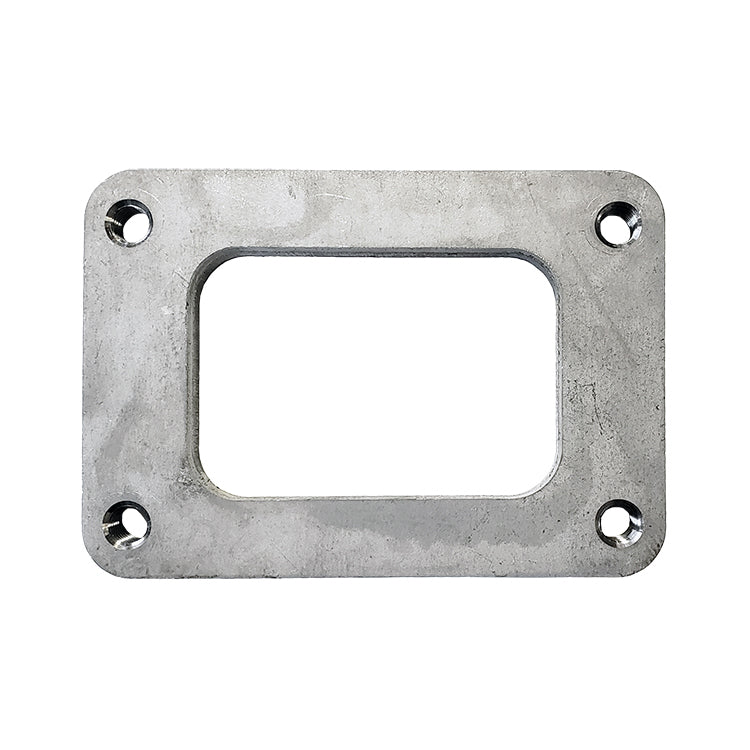

T6 Turbo Undivided Inlet Flange 304 Stainless (M10 x 1.5 Tapped Holes)

TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

The Ace Race Parts brand of Turbo Inlet Flanges are precision machined from 1/2-inch thick 304 Stainless and will not warp or deform. Our Undivided T6 Turbo Inlet Flange features M10 x 1.5 threaded bolt holes and can handle the extremely high exhaust temperatures of a turbo manifold.

FEATURES

• 0.500" Thick, 304 Stainless Steel
• Will Not Warp or Deform!
• M10 x 1.5 Threaded Bolt Holes

This T6 Undivided Turbo Inlet Flange has a 4.500" x 2.750" bolt pattern and is compatible with the following applications:

• Generic T6 Turbine Inlets
• all Garrett GT47 / GTX47
• all GT50 / GTX50
• all GTX55
• all GT60
• Note: May NOT be compatible with some Borg Warner T6 Turbos, some VS Racing T6 Turbos, or some Forced Induction T6 Turbos. Turbos that utilize the Borg Warner 4.44" x 2.75" bolt pattern are NOT compatible with this flange.


Please be sure to verify the bolt pattern of your existing application before purchasing this Undivided T6 Turbine Inlet Flange.
